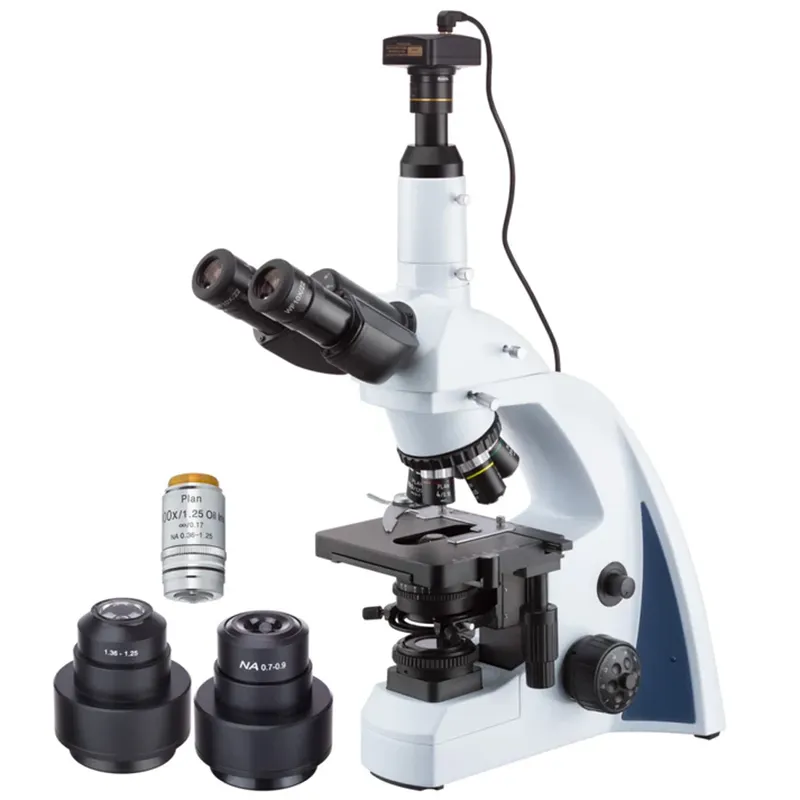

This infinity-corrected biological compound microscope is equipped with LED Koehler brightfield and darkfield illumination, along with a low-noise USB camera designed for low-light imaging. Its infinity-corrected optical system allows inline components to be added without the limitations of a finite tube length, including episcopic illuminators such as fluorescence kits.
The reversed quintuple nosepiece provides quick access to five objective positions, supporting 4X, 10X, 20X, 40X, and 100X objectives. The Plan achromatic objectives deliver excellent correction for chromatic aberration and field flatness. When paired with the 10X widefield eyepieces, the microscope offers magnification levels from 40X to 1000X. The Siedentopf trinocular head allows comfortable, compensation-free interpupillary adjustment, while the LED Koehler illumination system provides bright, even lighting with a field diaphragm for precise control.
With both dry and oil darkfield condensers included, this microscope offers enhanced versatility for observing translucent and transparent specimens. The iris-controlled 100X objective enables true darkfield observation at maximum magnification through adjustable numerical aperture, making this instrument well suited for clinics, laboratories, and blood analysis applications.
The included 1.2MP USB2.0 digital camera is engineered for excellent low-light performance. Its advanced back-illuminated CMOS sensor delivers high sensitivity, faster capture speeds, and performance that surpasses many traditional CCD cameras. The camera captures both still images and video, with frame rates up to 54fps at lower resolution in brightfield mode, and allows live viewing on a computer.
Compatible software is available for Windows, Mac, and Linux. The included Windows software provides image development, measurement tools, image stitching, and extended depth-of-focus functions. Independent preview and capture resolutions allow smooth high-speed video preview while capturing high-definition images. A lite version with limited processing features is available for Mac and Linux.
Features:
- Infinity-corrected optical system with Koehler illumination
- Includes dry and oil darkfield condensers
- Includes iris-controlled 100X objective for true darkfield observation
- Ergonomic reversed quintuple nosepiece
- Precision mechanical stage
- Front-loading light housing for easier maintenance
- Fully coated, high-resolution optical system
- Variable-intensity LED Koehler illumination for efficient, even lighting
- 30° inclined, 360° swiveling trinocular head
- Compensation-free Siedentopf interpupillary adjustment
- Six Plan objectives: 4X, 10X, 20X, 40X, 100X oil, and 100X iris oil
- Five magnification levels: 40X, 100X, 200X, 400X, and 1000X
- Abbe condenser with iris diaphragm and swing-out filter holder
- Rack-and-pinion condenser height adjustment
- Large double-layer mechanical stage with stain-resistant finish
- Upper-limit stage stop for added safety
- Low-position coaxial stage movement controls
- Dual-sided coaxial coarse and fine focusing controls
- Durable cast-alloy frame with stain-resistant enamel finish
- Compatible with optional accessories, including phase contrast, darkfield, and fluorescence kits
- Manufactured under ISO 9001 quality control standards
- Excellent 5-year factory warranty
Specifications:
- Optical System: Infinity-corrected
- Nosepiece: Reversed ball-bearing quintuple nosepiece
- Head: Siedentopf trinocular head, 30° inclined
- Eyepieces: Focusable 10X widefield eyepieces, FN22mm
- Objectives: Plan 4X, 10X, 20X, 40X spring, 100X spring oil, and 100X iris spring oil
- Focusing System: Low-position coaxial focusing system
- Interpupillary Adjustment: 2-3/16″ to 3″ / 55–75mm
- Mechanical Stage: 7.1″ x 5.9″ / 180mm x 150mm
- Stage Travel Range: 3″ x 2″ / 75mm x 50mm
- Fine Focus Division: 0.0000787″ / 0.002mm
- Condenser Mount: Front-loading with flange
- Mounting Diameter: 37mm
- Brightfield Condenser: N.A. 1.25 with iris diaphragm and filter

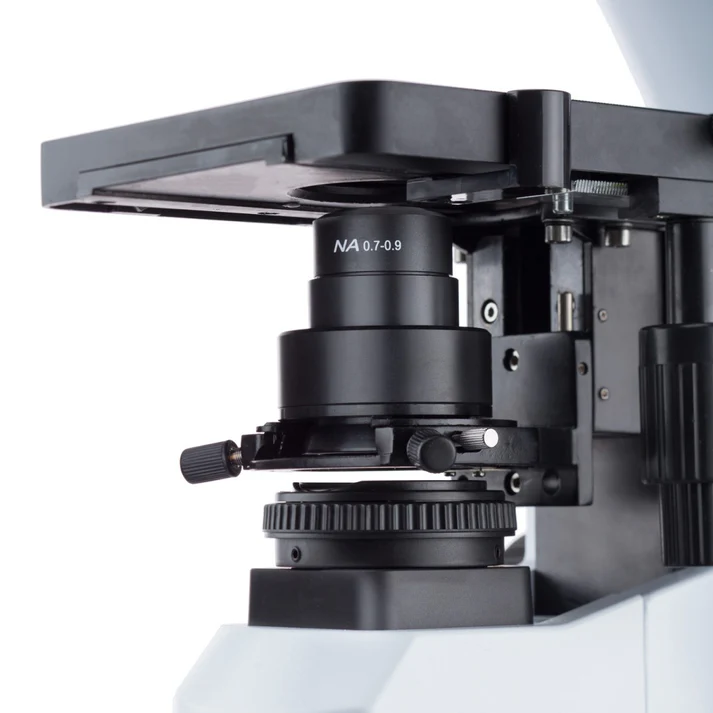

- Darkfield Condensers: N.A. 0.7–0.9 dry and N.A. 1.25–1.36 oil
- Iris Objective N.A. Range: 0.36 to 1.25
- Illumination: LED Koehler illumination
- Power Supply: 85V–230V wide voltage, CE certified
Package Includes:
- One Siedentopf trinocular head
- One microscope body with Koehler illumination system
- Six high-quality Plan infinity objectives: 4X, 10X, 20X, 40X, 100X oil, and 100X iris oil
- One pair of extreme widefield 10X eyepieces
- One oil darkfield condenser
- One dry darkfield condenser
- One power cord
- One dust cover
- One 1.2MP USB2.0 digital camera
- One USB cable
- One reduction lens and adapters
- One CD with driver, software, and user instructions
