Ergonomic Hand Crank or Electric Option
|
Item No: LK-RM02C

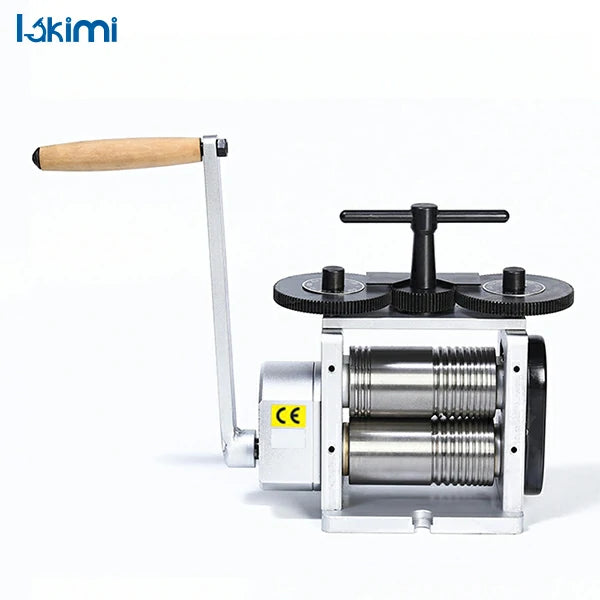

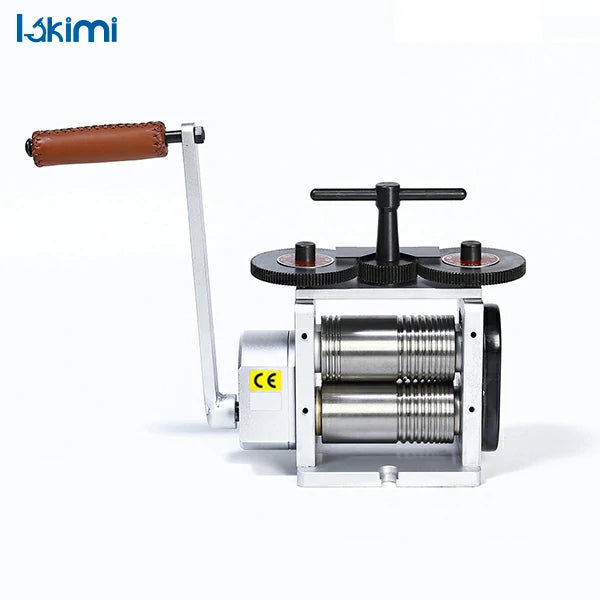

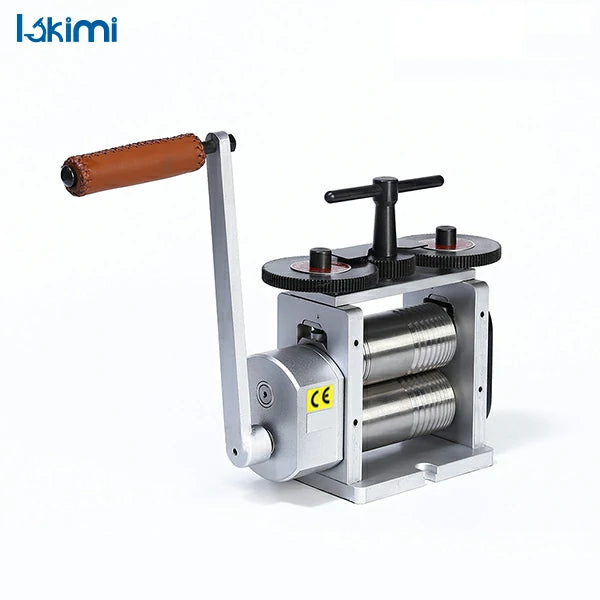

Item Name: Combination Rolling Mill in Grey with 130mm Rolls
Gear Ratio: 4:1
Roller Width: 130MM
Roller Diameter: 65MM
Maximum Opening: 4.5MM
Flat Area: 55MM
Square Wire(+/-0.01MM): 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5
Ring shank-half round ellipsis: 2.5*1, 3*1.25, 4*1.5MM
Dimension: 30*12.5*29.5CM
Shipping Dimension: 34*33.5*20CM
Shipping Weight: 23KG
|
Precision Roller Adjustment with “T” Bar Control
The “T” bar located atop the jewelry rolling mill is used to open or close the rollers. When fully closed, the rollers must align seamlessly without any discernible gaps to ensure accurate measurements.

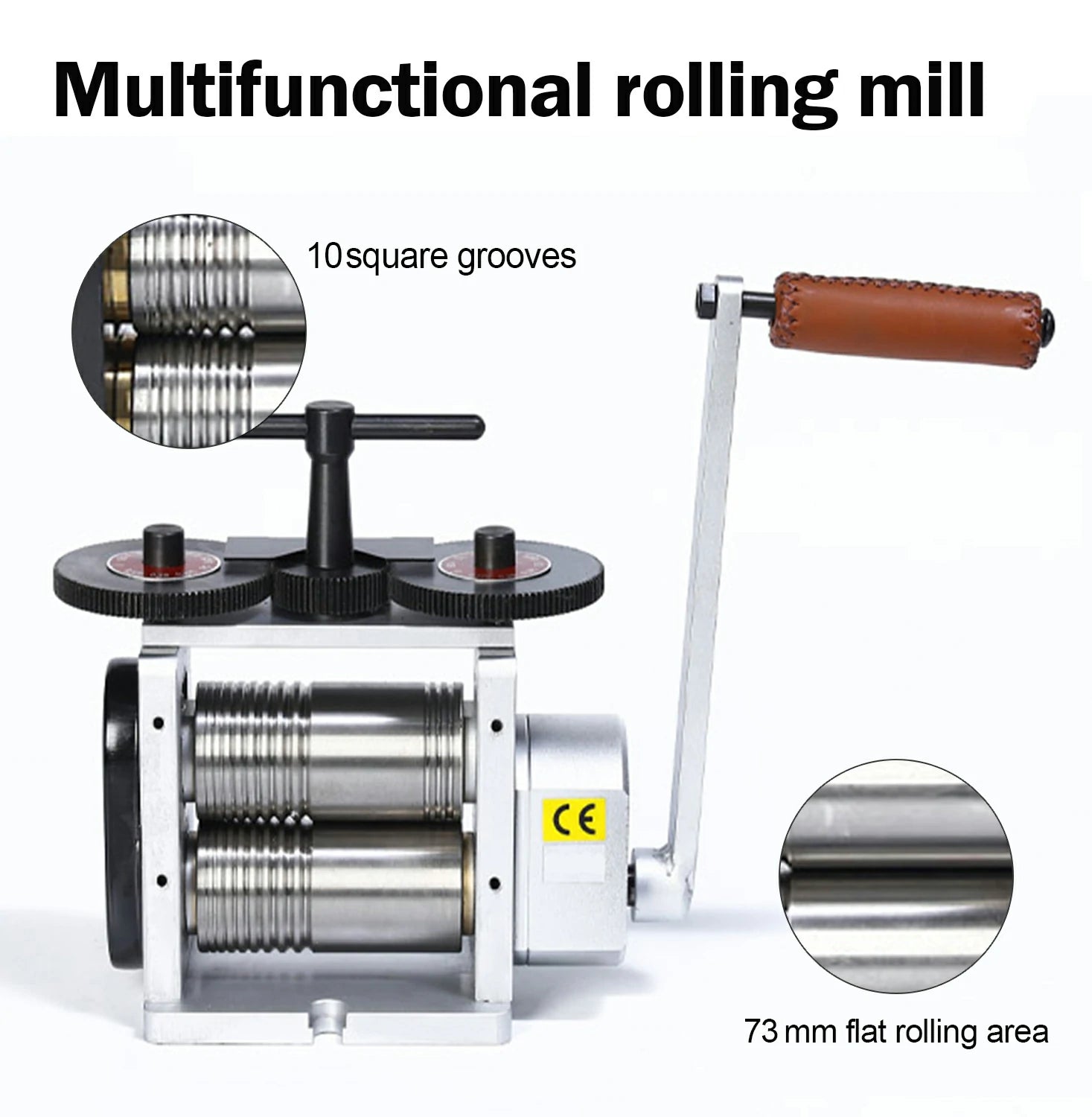

Multi-Form Roller for Diverse Shaping Needs
The multifunctional roller offers top-notch performance, with the ability to shape strips, slices, and semicircles, catering to various needs.
Effortless Operation with Ergonomic Handle
Introducing the Effortless Operation Handle for Rolling Mills, an innovative accessory meticulously crafted to minimize manual effort, ensure precision control, and greatly enhance productivity in metalworking operations. Designed with durability and adaptability in mind, this handle offers operators a comfortable and efficient solution for optimized workflow and superior metalworking outcomes.
Essential Tool for Wire Shaping Applications
A wire rolling mill is a specialized machine crucial in metalworking, shaping metal wires into different sizes and forms by reducing their cross-sectional area while extending their length. These mills play a crucial role in crafting wires for diverse applications, ranging from electrical cables to jewelry and construction materials.
