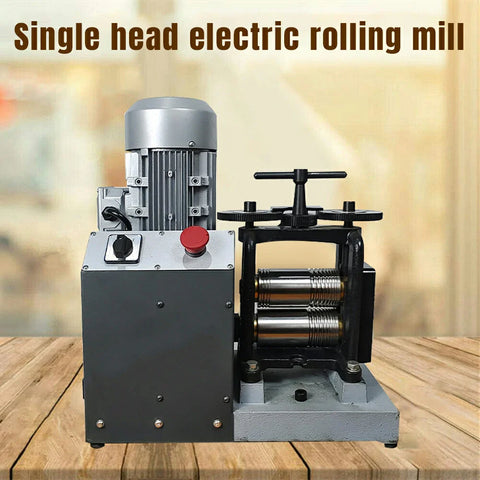

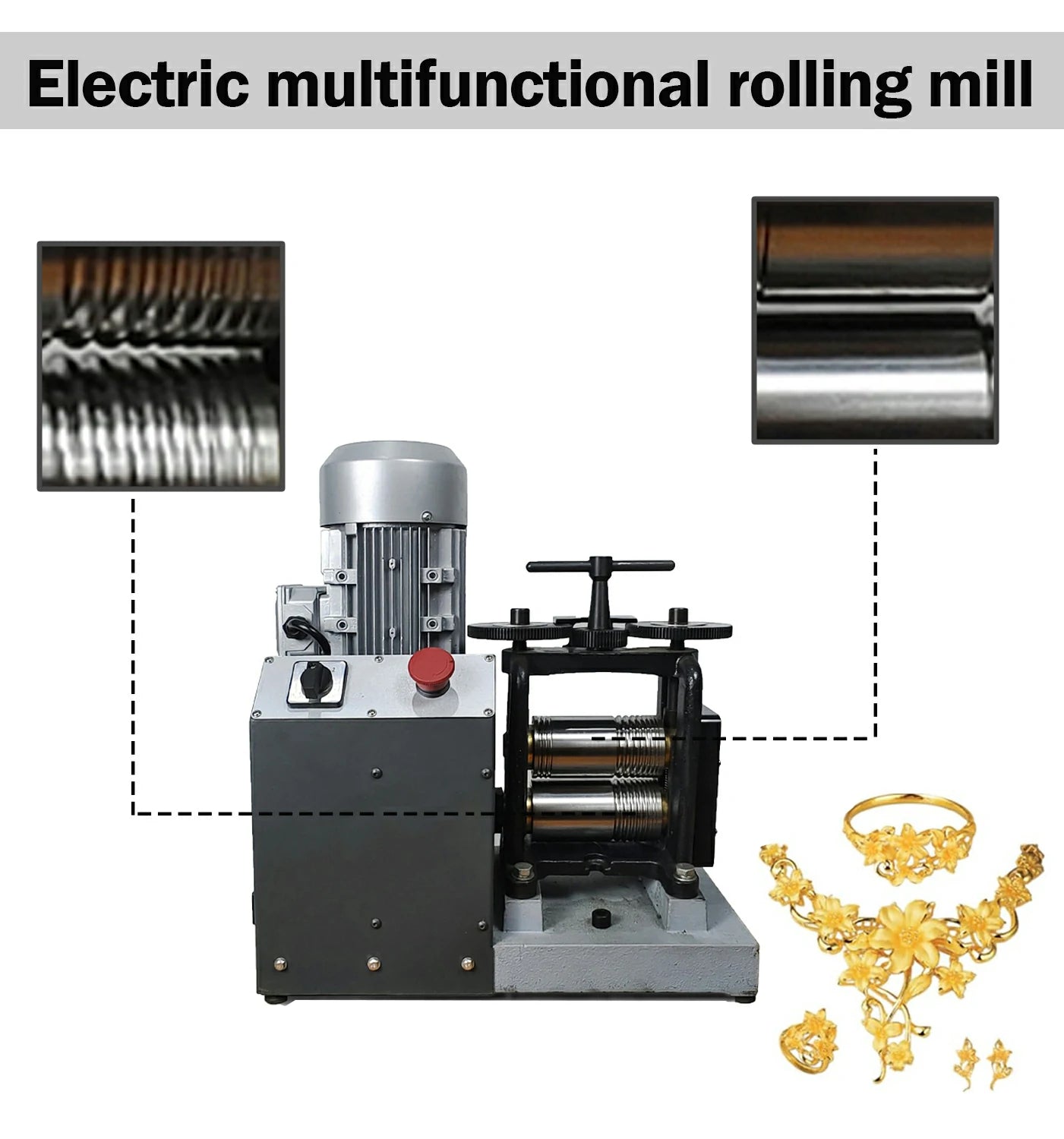

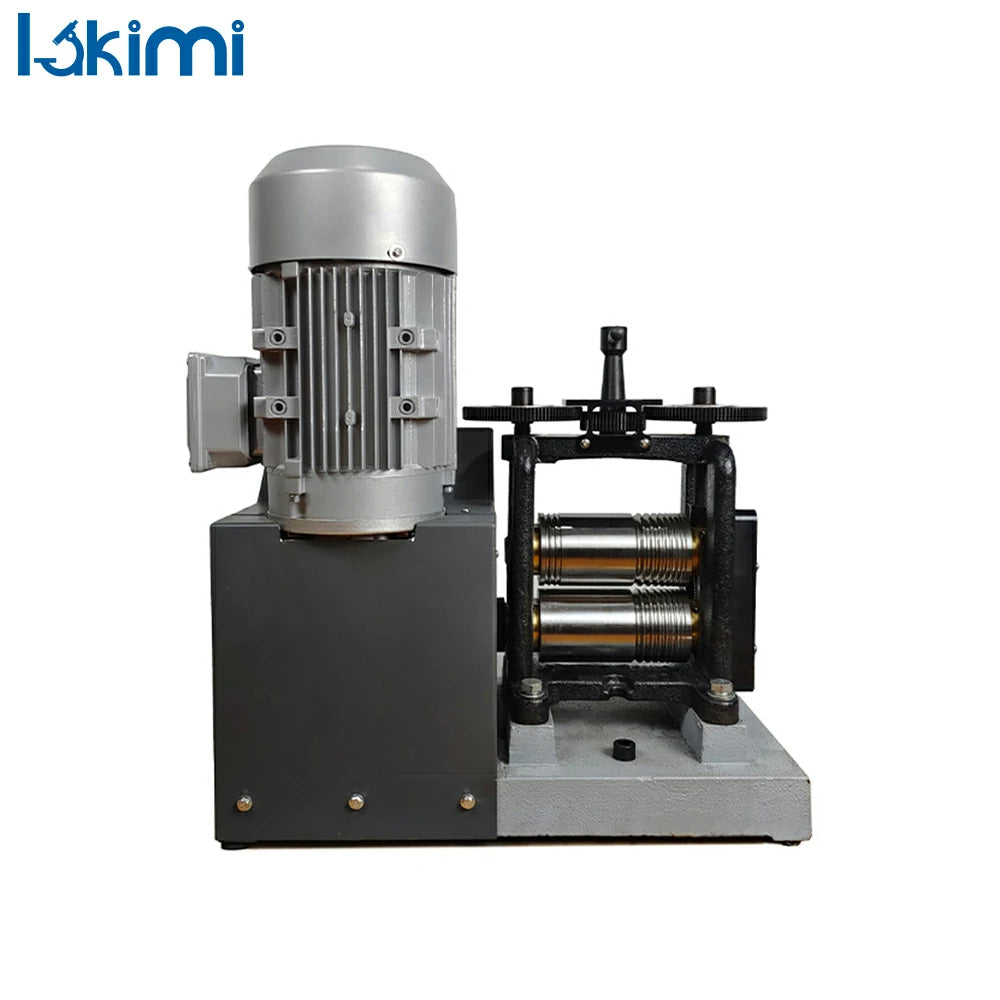

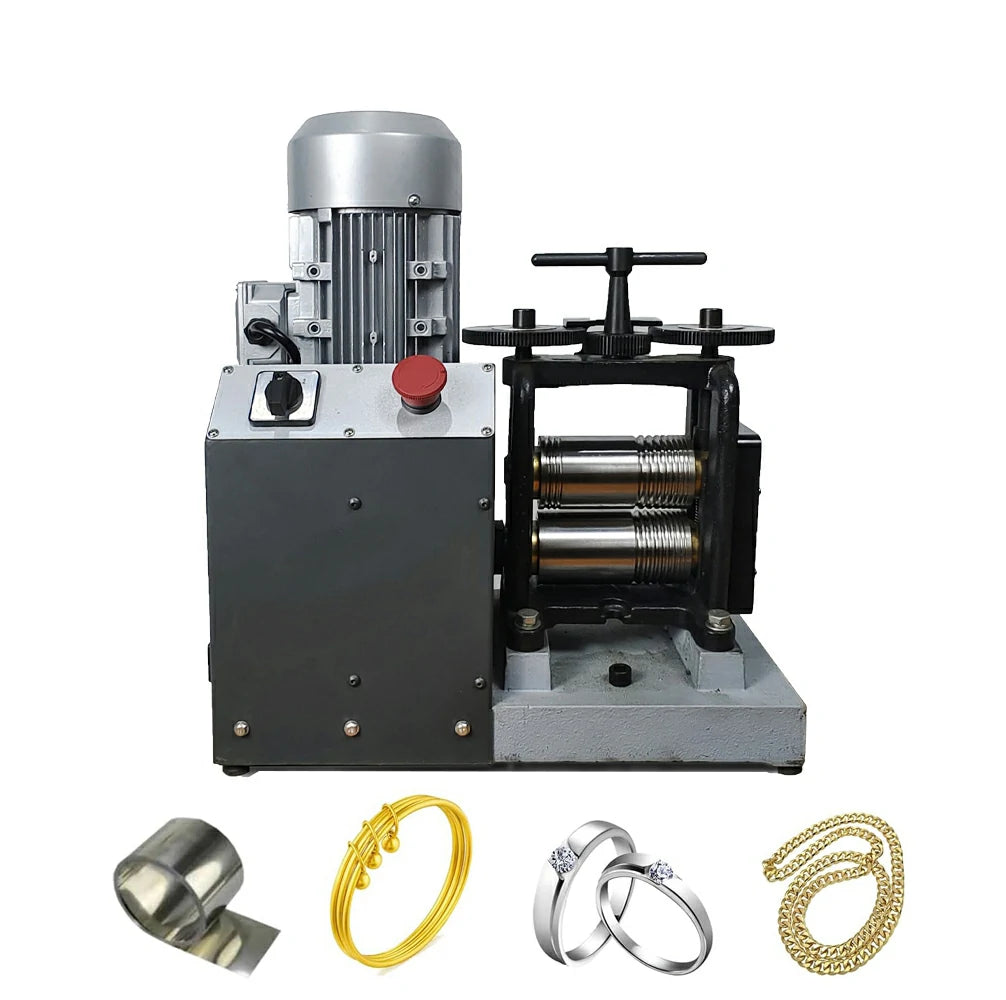

High-Powered Electric Rolling Mill

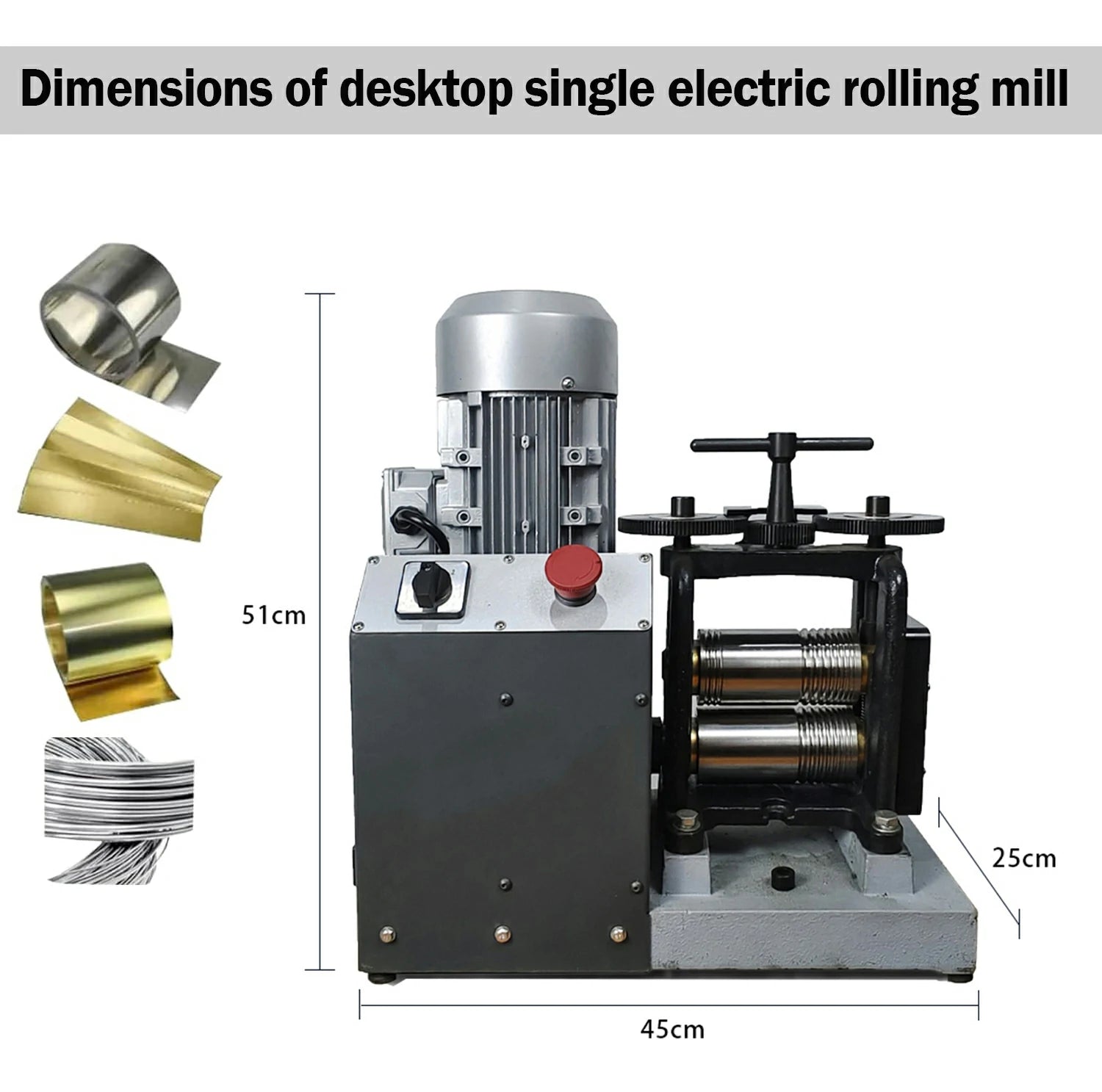

| Item No:LK-RME01 Item Name:Electric Rolling Mill with Single Head 130mm Power·:2HP Voltage:110V/220V Roller Width:130MM Roller Diameter:65MM Maximum Opening:5MM Flat Area:63MM Square Wire(+/-0.01MM):1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5 Ring shank-half round ellipsis:2.5*1, 3*1.25, 4*1.5MM Dimension:45*25*51MM Shipping Dimension:60*41*66CM Shipping Weight:72.5KG |

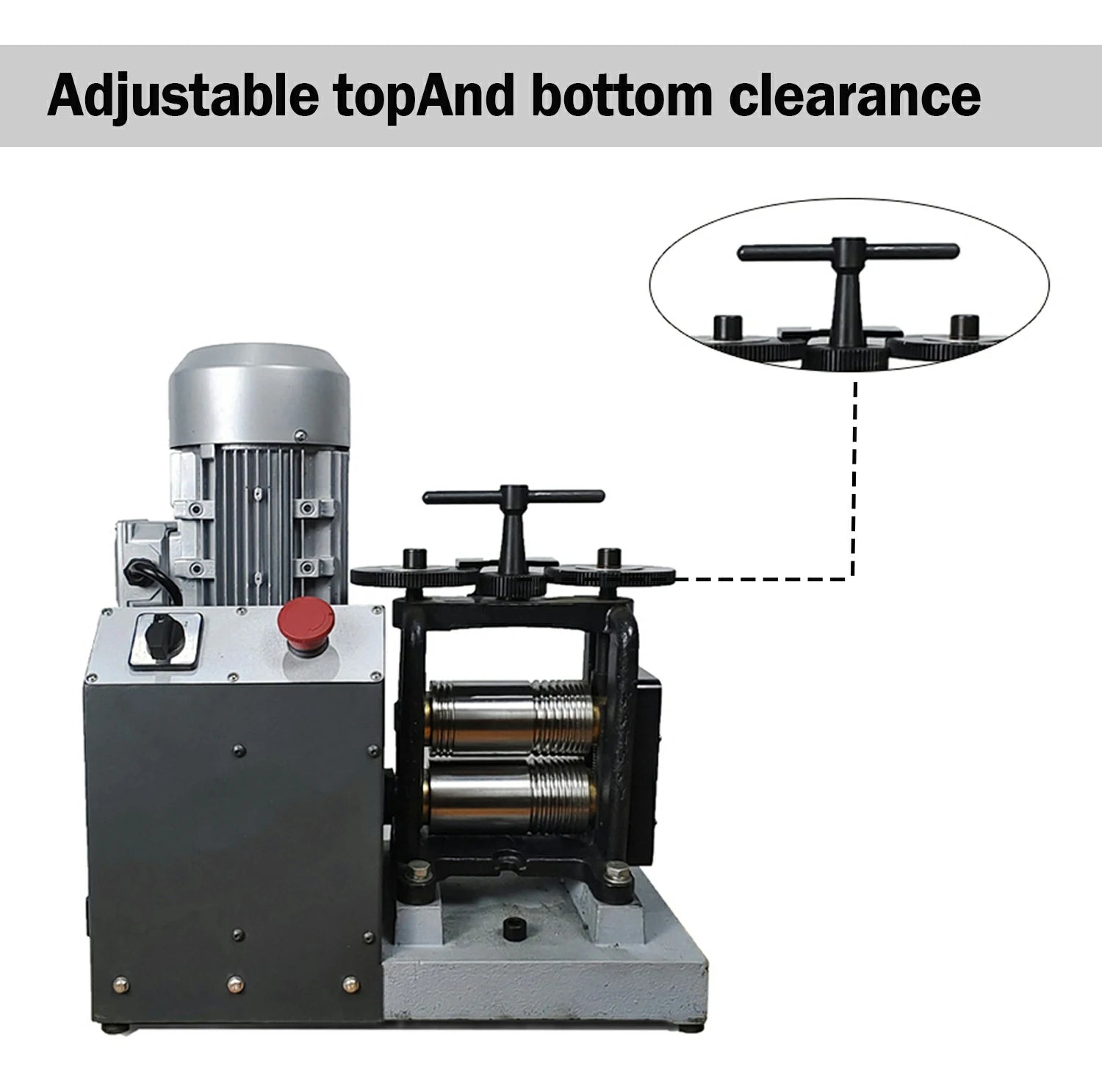

Precision Adjustment with the “T” Bar
The “T” bar located atop the jewelry rolling mill is used to open or close the rollers. When fully closed, the rollers must align seamlessly without any discernible gaps to ensure accurate measurements.
Instant Stop with Pause Function
Activate the pause button to instantly halt the machine. After pausing, turn the button to the right to resume machine operation.
Easy Direction Control via Reverse Switch
Employ the forward and reverse switch by turning it to the right for backward rolling and to the left for forward rolling. When the switch points to 0, the machine comes to a stop.
Key Tool for Wire Shaping and Sizing
A wire rolling mill is a specialized machine crucial in metalworking, shaping metal wires into different sizes and forms by reducing their cross-sectional area while extending their length. These mills play a crucial role in crafting wires for diverse applications, ranging from electrical cables to jewelry and construction materials.
