Product Information

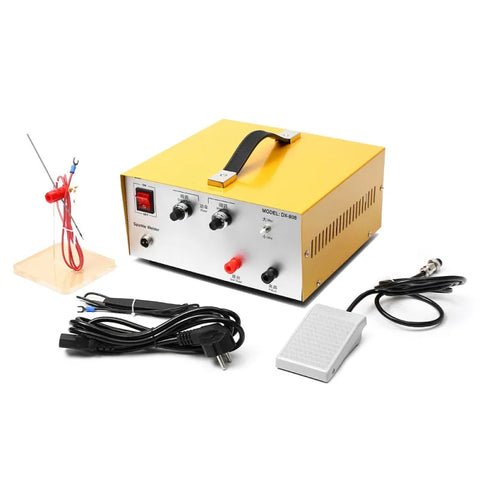

Precision Jewelry Spot Welder – Fast, Smooth, and Reliable Welding
This jewelry spot welder can be used for Platinum, Gold, Silver, Steel fast welding, on the ring mouth, melon buckle. Fine wire precision welding, direct welding without welding powder. Smooth welding point.

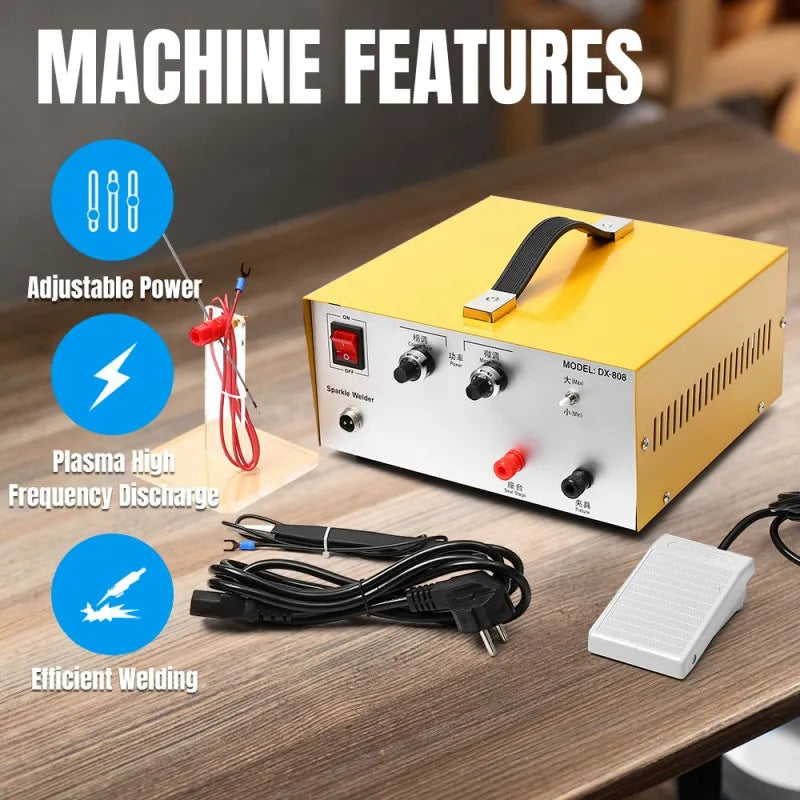

Adopting plasma high frequency discharge principle, forming a molten pool in the metal weld instantly.
Adjust the output power according to the different size of the wire
The welded workpiece is smooth, firm, fast and efficient.

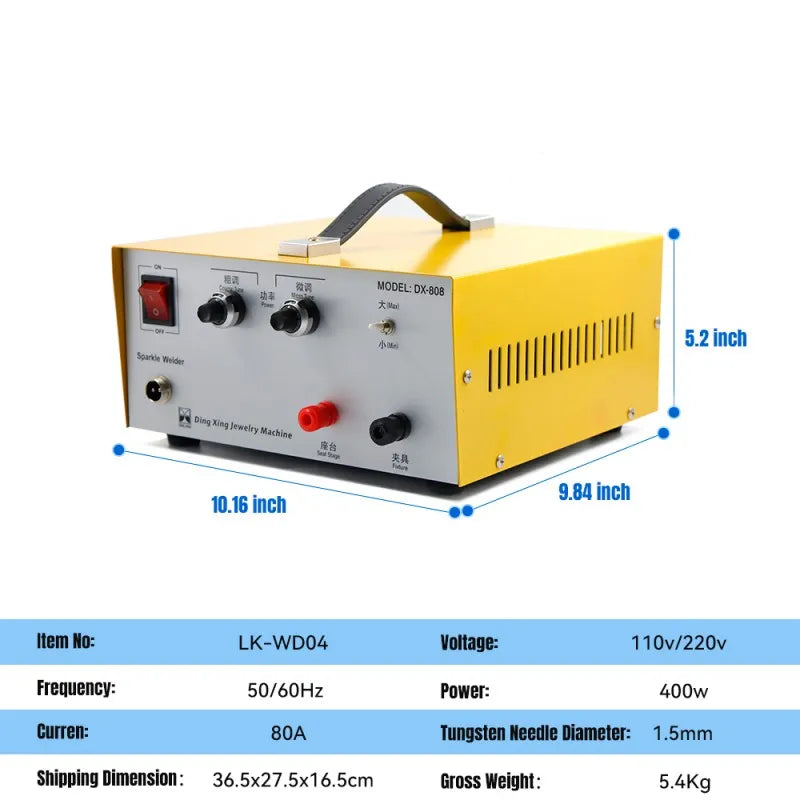

Specifications
Item No: LK-WD04
Item Name: Jewelry Spot Welder
Power Supply: 110V/220V
Shipping Dimension: 36.5*27.5*16.5CM
Shipping Weight: 5.4Kg
Operation steps
- Connect the electrode clamp to the negative output terminal and the electrode holder to the positive output terminal. Turn on the power, then turn on the power.

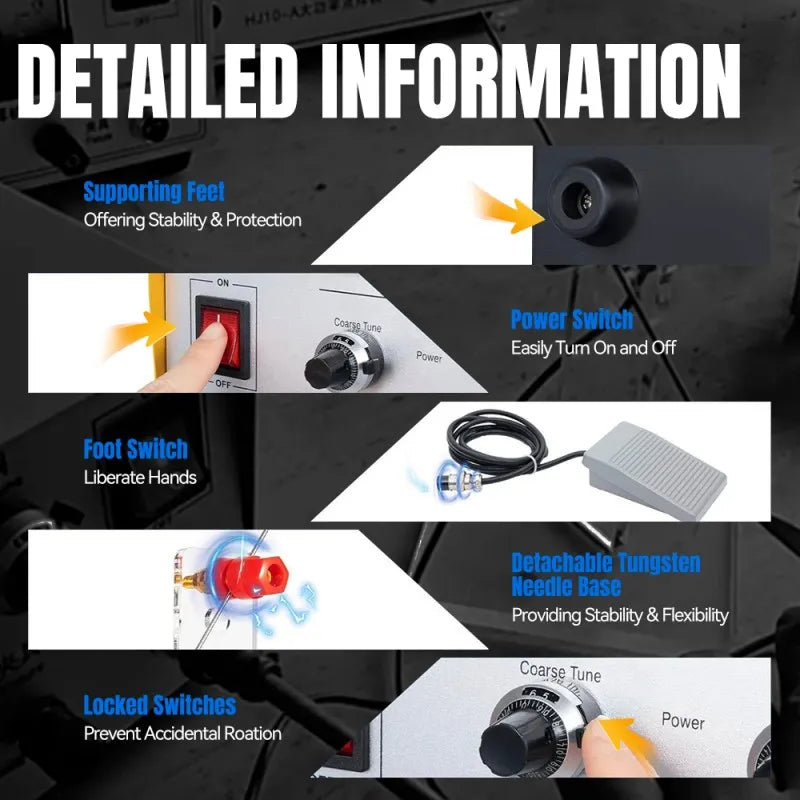

- Adjust the power control knob, which provides coarse and fine adjustment settings. Set the appropriate scale value according to your specific work requirements.

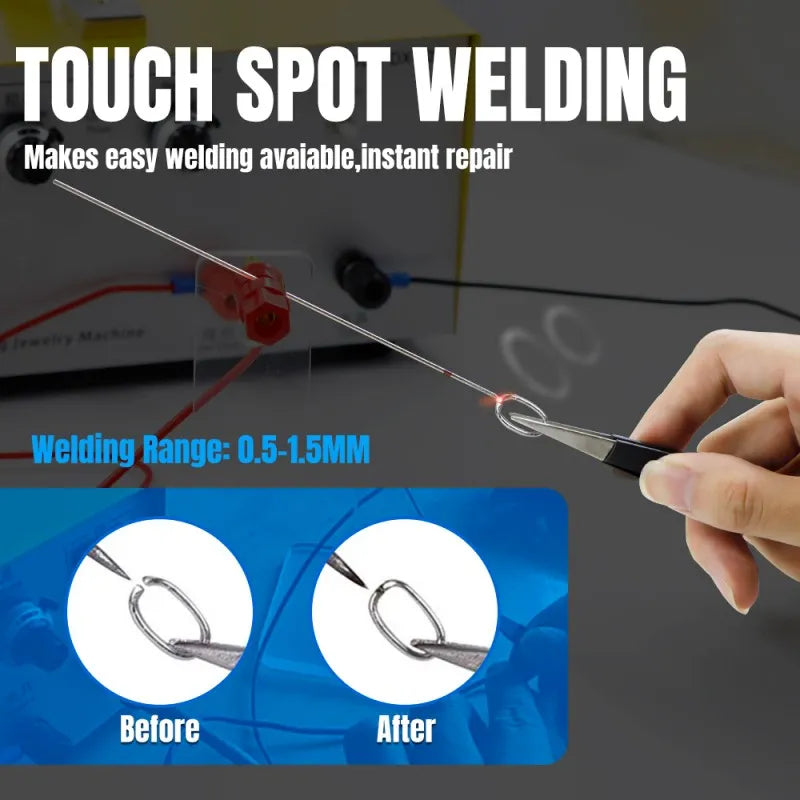

- Use tweezers to position the workpiece so that the interface is aligned with the tungsten needle, maintaining a gap of about 5mm. Make sure the workpiece does not touch the needle. The tungsten needle should be sharpened on a grinder to ensure optimal performance, utilizing the tip discharge principle.
Tungsten needle diameter: 1.5mm - Depress the foot switch to start the spot welding process. When finished, release the foot to complete the welding.
